HVG MARINE PROPULSION EQUIPMENT 0048: JT/T365-1995 Stern Shaft Lubrication Oil Tank

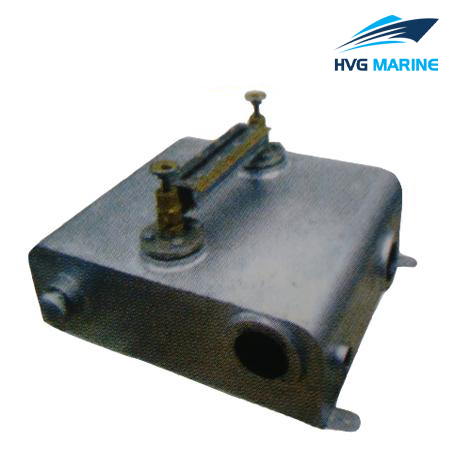

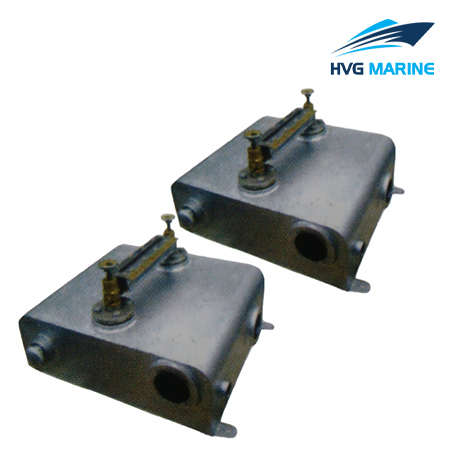

This product is marine stern shaft lubrication oil tank which is approved by JT/T365-1995 standard. This type of oil tanks above 30L can be equipped with a low oil alarm device. In the table as follow, we can supply four models of this product. The sizes of it are for reference only. We can make a special design according to customer’s request.
|
Model |
Capacity L |
A |
B |
H |
H1 |
d |
Applicable stern shaft diameter |
Weight kg |
|
|
One shaft with on oil tank |
Two shafts with one oil tank |
||||||||
|
15JT/T365 |
15 |
245 |
370 |
630 |
360 |
15 |
≥70≤120 |
＜70 |
10 |
|
30JT/T365 |
30 |
245 |
520 |
730 |
460 |
15 |
＞120≤170 |
≥70≤120 |
15 |
|
50JT/T365 |
50 |
285 |
670 |
730 |
460 |
20 |
＞170 |
18 |
26 |
