    HVG MARINE PROPULSION EQUIPMENT 0047

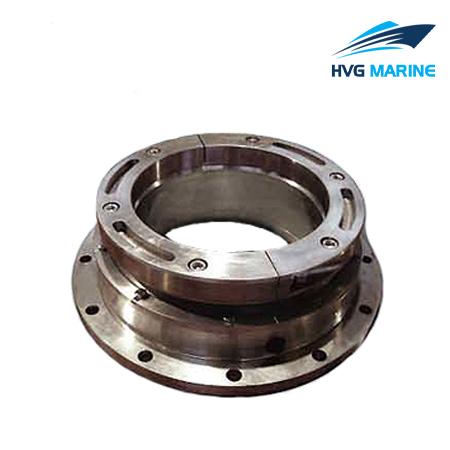

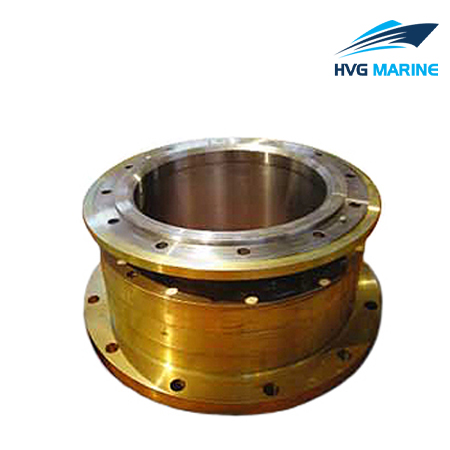

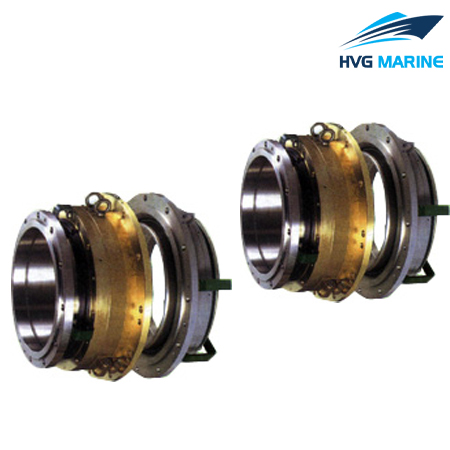

    HVG MARINE PROPULSION EQUIPMENT 0047: Marine Oil Lubrication Stern Shaft Seal

    This product is marine oil lubricated stern shaft seal. It is suitable for kinds of vessels whose lubricating working medium is oil and which do not need to disassemble the propeller shaft and rudder blade while installing, changing and maintaining. The shaft housing and forward sealing apparatus can adopt a split or integral structure. Customers can make their own choice according to different requirements.

    Technical specification:

    • Technical parameters:
    • 1. Diameter range of stern shaft: 50～1150mm
    • 2. Outside diameter of stern shaft wear liner: 70～1250mm
    • 3. Lubricating oil working pressure: 1～2bar
    • 4. Lubricating oil working temperature: -25℃～+110℃
    • 5. Line speed of stern shaft wear liner: ≤7m/sec
    • 6. Average leakage: 5-30ml/h
