HVG MARINE PROPULSION EQUIPMENT 0044

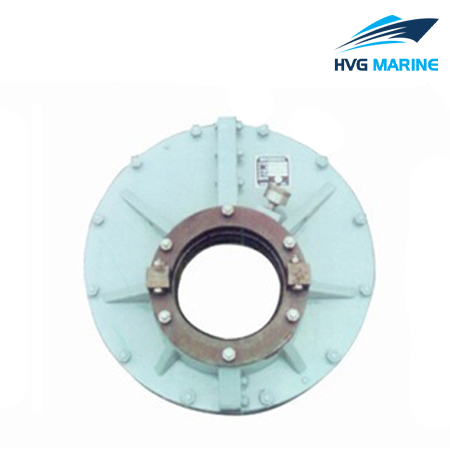

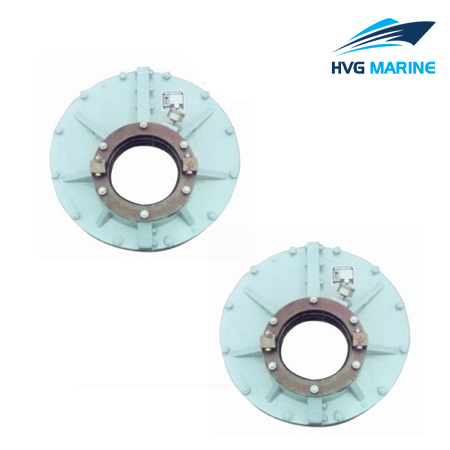

HVG MARINE PROPULSION EQUIPMENT 0044: Type B Bulkhead Stuffing Box

Made with cast iron & carbon steel, this product is the type B marine intermediate shaft bulkhead stuffing box. It is the sealing device that is installed in the bulkhead where the shaft is through in order to ensure watertight. This product is in accord with the standard JT/T263-1995. We can provide many classification society certificates such as CCS, BV, DNV, KR, NK, GL, and RINA.

Features:

1. Material: cast iron & carbon steel
2. Standard: JT/T263-1995
3. Certificates: CCS, BV, DNV, KR, GL, etc.
4. Application: used for the vessels whose bulkhead space is small

Technical specification:

Drawing of Type B Bulkhead Stuffing Box

Drawing of Type B Bulkhead Stuffing Box

Type	Dimensions (mm)
Type	D	D₁	D₂	L	h	n	d	δ	oil cup (cm³⁾
B220	220	576	646	180	90	12	17	22	50
B250	250	646	716	180	110	12	17	22	50
B280	280	710	780	180	115	12	17	22	50
B300	300	755	825	180	120	14	21	28	50
B320	320	798	878	210	130	14	21	28	50
B350	350	858	938	210	140	14	21	28	50
B380	380	918	998	210	150	16	21	28	50
B400	400	958	1038	210	160	16	21	28	50
B450	450	1056	1145	230	175	16	21	28	100
B470	470	1107	1197	230	185	18	25	34	100
B500	500	1170	1260	230	195	18	25	34	100
B530	530	1234	1324	230	205	18	25	34	100
B560	560	1296	1386	250	215	20	25	34	100
B600	600	1380	1480	250	230	20	25	34	100
