HVG MARINE MOORING EQUIPMENT 0149

HVG MARINE MOORING EQUIPMENT 0149: Guide Roller

HVG MARINE MOORING EQUIPMENT 0149 fairlead roller is applicable to guiding mooring rope’s direction. Its roller diameter varies from 100mm to 450mm. The material of HVG MARINE MOORING EQUIPMENT 0149 roller can be steel or iron. Steel wire, hemp wire and synthetic fiber wire are suitable for HVG MARINE MOORING EQUIPMENT 0149standard fairlead roller. Among these three types of wire, the steel wire has the largest breaking load value.

We can provide various types of fairlead rollers. If you’re interested in our guide rollers, please feel free to contact us.

Specification:

Material: Cast Steel/Cast Iron
Roller Diameter: 100mm~450mm
Weight: 9.4kg~462.0kg
Certificate: CCS,ABS,LR,BV,NK,RINA

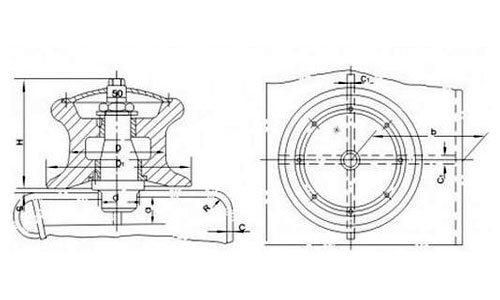

Drawing:

Technical specification:

Technical specification

Unit:mm

Diameter of Roller D	Max. Dimeter of Applicable Cable					Base Size						Dimensions			Weight(kg)
	Steel(GB1102) Stress Length 1520N/mm²			Hemp Rope	Synthetic Fiber Rope	a	b	c	c1	d	R	D1	H	S	Cast Iron(HT)	Cast Steel(ZG)
	6×24	6×30	6×37	Hemp Rope	Synthetic Fiber Rope	a	b	c	c1	d	R	D1	H	S	Cast Iron(HT)	Cast Steel(ZG)
100	11	11	11	40	28	60	125	8	6	48	30	160	128	3	9.4	9.9
150	17	17.5	15	45	32	75	190	12	8	71	40	240	211	3	32.1	33.8
200	22.5	21.5	19.5	55	40	85	230	14	10	95	40	310	251	3	64.6	68.0
250	24	26	24	65	45	100	265	14	10	107	40	380	298	4	108	114.0
300	30	32.5	28	70	50	100	320	16	14	127	60	440	321	4	159	168.0
350	37.5	39	34.5	75	55	100	350	18	14	144	60	500	346	4	235	248.0
400	41	39	39	85	65	100	380	20	16	161	60	560	371	5	336	355.0
450	44.5	47.5	43	–	80	100	410	20	16	180	60	620	394	5	413	462.0
