HVG MARINE ELECTRIC EQUIPMENT 0240

HVG MARINE ELECTRIC EQUIPMENT 0240: Marine Oblique Spot Light

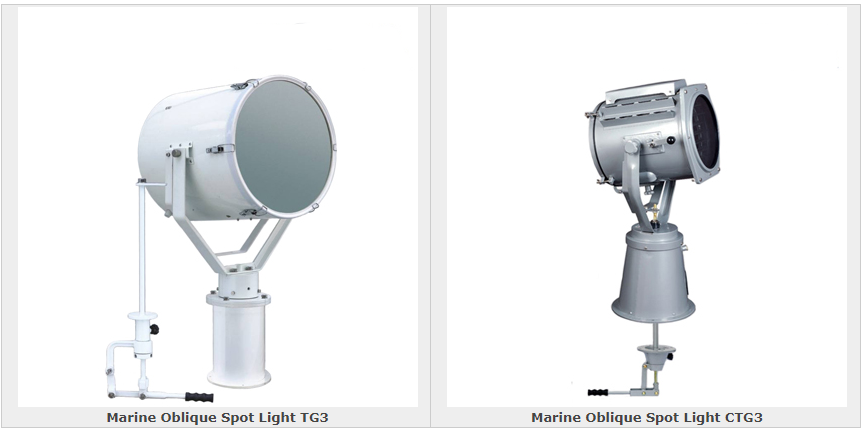

Marine oblique spot lights including TG3, TG3-A, CTG3, CTG3-A, TG14 are the important marine lighting tools. The light body can rotate for 180 degrees horizontally and pitching 30 degrees. The lampshade is transparent safe toughened glass. It is equipped with focus nut under the light shell, which can be used to adjust the lighting focus.

Product Details:

1. Type: TG3, TG3-A, CTG3, CTG3-A, TG14
2. Voltage: DC110V/ AC220V
3. Rate of Power: 1000W
4. Light Source: Incandescent Focus Bulb
5. Lampholder: E40
6. Material: Steel
7. Protection Class: IP56
8. Cable outside diameter: Φ10-Φ12
9. TG3, TG3-A, CTG3 and CTG3-A have lifter and controller.

Technical specification:

Specification:

Type	Voltage	Power	Lamp Holder	Material	Protection class	Weight
TG3	DC110V/AC220V	1000W	E40	Steel	IP56	47.5kg
TG4	DC110V/AC220V	1000W	E40	Steel	IP56	82kg
CTG3	DC110V/AC220V	1000W	E40	Steel	IP56	47.5kg
CTG4	DC110V/AC220V	1000W	E40	Steel	IP56	82kg
TG14	DC110V/AC220V	1000W	E40	Steel	IP56	24.5kg
